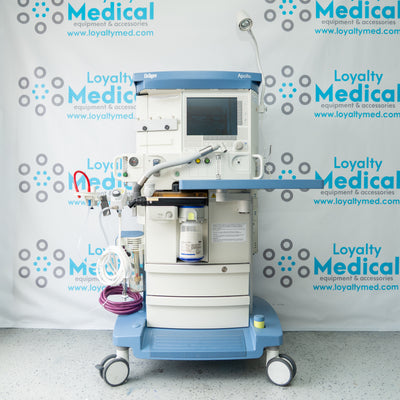

The Dräger Apollo Anesthesia System (Model 8606500) is an elite-tier, integrated anesthesia workstation designed to deliver superior ventilation therapy and seamless workflow integration in high-acuity surgical environments. Manufactured with a Date of Manufacture (DOM) of 2022 and running updated Software Version 04.53.05, this system incorporates Dräger’s advanced E-Vent plus electronically driven piston ventilator technology. This allows the system to achieve ICU-quality ventilation without requiring drive gas, offering exceptional precision across a complete patient spectrum, from neonatal and pediatric to adult cases. The intuitive user interface displays real-time parameters, waveforms, and loops, ensuring critical clinical data and electronic fresh gas controls remain instantly accessible.

Designed for maximum operating room efficiency and patient safety, this Dräger Apollo workstation features automated self-tests, low-flow ventilation optimization, and integrated safety maneuvers to protect patient lung health during complex procedures. The ergonomic physical architecture includes a spacious workstation surface, integrated task lighting, flexible monitor mounting arms, and a smooth-rolling mobile trolley with a central braking system. Fully inspected, calibrated, and biomed-certified to original factory standards, this 2022 Dräger Apollo system offers unmatched clinical reliability, modern software compliance, and cost-effective performance for your facility.

Product Specifications

Feature / Attribute	Specification Details
Manufacturer	Dräger Medical
Model	Apollo Anesthesia Workstation
Model / Catalog Part #	8606500
Serial Number	ASPN-0035
Year of Manufacture (DOM)	2022
Software Version	SW 04.53.05
Patient Demographics	Adult, Pediatric, Neonatal
Ventilator Technology	E-Vent® plus (Electronically driven piston ventilator)
Ventilation Modes	Volume Control (VCV), Pressure Control (PCV), Synchronized Intermittent Mandatory Ventilation (SIMV), Pressure Support (PS), Manual/Spontaneous
Tidal Volume Range	20 mL – 1400 mL (VCV) / 5 mL – 1400 mL (PCV/PS)
Fresh Gas Delivery	Electronic digital flow measurement and control
Drive Gas Required	None
Display	High-resolution color screen with customizable real-time waveforms & loops
Self-Test Capability	Fully automated pre-use system check
Battery Backup	Integrated internal backup battery (minimum 30–90 mins depending on configuration)
Condition	Refurbished
